              HYBRID SANDWICH PANELS

              Concrete

              45 MPa design, 200 +- 20mm, 4-7% Air entrainment, Type 10 Normal Cement

              Connections (details in dwg or pdf format can be sent to Architects or Structural Engineers upon request)


              Wood Truss to Panel

              A top plate is bolted to the top of the panel, typically on 4'-0" [1219mm] centers using cast-in 3/4"[19mm] diameter bolts.


              Steel joist to Panel

              A "truss pocket" can be cast into panel to allow truss to sit on a steel bearing plate.  Depending on the project, a parapet (change in height) may be used.


              Beam to Panel

              A "beam seat" can be cast into the panel to allow the beam to sit on a steel bearing plate.  In most cases, the precast panel can be changed in order support structural requirements of the beam (deleting the need for a structural steel beam).  For smaller beams, a face weld plate with anchor studs allows for flush mounting of beams.


              Lintel connections

              Lintels are welded to adjacent panels.


              Panel Finishes

              1. Smooth (hand troweled)
              2. Sandfloat
              3. Form liner finish - Typically panel is poured face down [exterior side on our casting deck] to allow for special form finish
              4. Broom

              NOTE: It is possible for us to produce multiple panel finishes on panels.

              Some recent projects that have used  Hybrid Sandwich panels (click on pictures to enlarge):

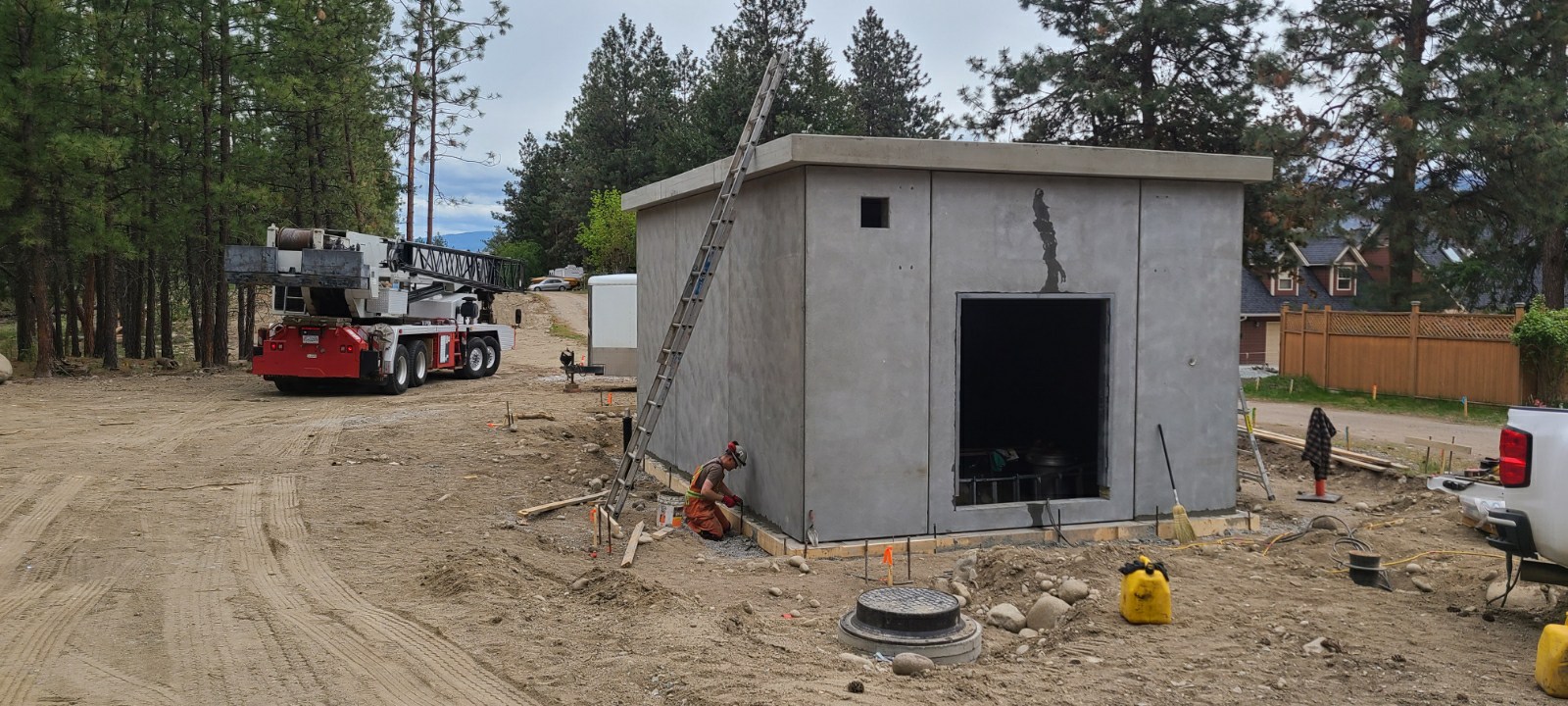

              Peachland PRV Mar 2021
              Peachland PRV Mar 2021
              Barriere WTP Dec 2019
              Barriere WTP Dec 2019
              Alpha Lake Road May 2017
              Alpha Lake Road May 2017
              Peachland PRV Mar 2021
              Peachland PRV Mar 2021
              Barriere WTP Dec 2019
              Barriere WTP Dec 2019
              Alpha Lake Road May 2017
              Alpha Lake Road May 2017
